Behind every seamless driver-assist feature—adaptive cruise control, automatic emergency braking, lane-centering—lies a silent network of optical precision and digital synchronization. The reinforced car camera link schematic is far more than a circuit diagram; it is the backbone of real-time perception, where milliseconds matter and design flaws can translate directly into safety failures. This is not just wiring.
Understanding the Context
It’s a battle between signal integrity, environmental robustness, and the relentless push toward autonomy.

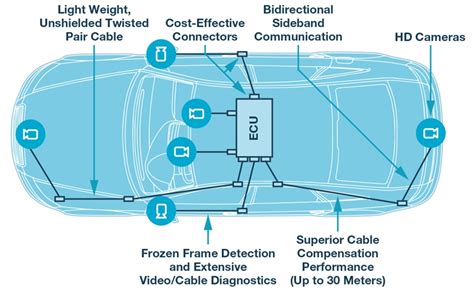

At first glance, the schematic resembles a web of interconnecting lines—camera sensors, signal processors, communication buses, and control actuators—all linked by micro-wire traces and high-speed differential pairs. But the reinforcement isn’t just physical. It’s architectural. Modern reinforced schematics incorporate **redundant signal paths**, **shielded differential signaling**, and **frequency-hardened filtering** to combat electromagnetic interference (EMI), thermal drift, and even physical shock.
Image Gallery
Key Insights
Engineers no longer treat camera links as afterthoughts—they’re embedded early in system design, often co-optimized with radar and LiDAR nodes.
One overlooked truth: camera link reliability degrades not from component failure, but from **cumulative signal degradation**. In high-vibration environments—common in off-road or high-speed driving—micro-bends in trace geometry cause intermittent drops. Reinforced designs counter this with **flexible flex-rigid substrates**, which maintain signal fidelity across thermal expansion and mechanical stress. A 2023 case study from a major German OEM revealed that upgrading to a dual-pair, shielded coaxial architecture reduced latency jitter by 40% under dynamic load, directly improving collision avoidance response times.
But reinforcement demands trade-offs. The **signal-to-noise ratio (SNR)** must be preserved amid multipath interference—especially in dense urban canyons where GPS-denied navigation relies on camera fusion.
Related Articles You Might Like:
Exposed Redefining creativity inside hobby lobby through custom craft tables Watch Now! Revealed Analyzing Metric Translation Of 2 3/8 Inches Into Millimeters Must Watch! Exposed Optimized Interaction Strategies for Crafting Table 2 in Osrs UnbelievableFinal Thoughts
Reinforced schematics deploy **time-domain reflectometry (TDR)-aware routing**, ensuring trace lengths are balanced to within nanoseconds. This precision eliminates phase misalignment, a silent saboteur of sensor fusion accuracy. It’s not just about speed—it’s about consistency, down to the picosecond level.
Redundancy isn’t just a buzzword—it’s a design imperative. Leading automakers now embed parallel communication channels, such as dual CAN FD or Ethernet AVB links, that cross-validate sensor inputs. If one path fails, the redundant stream takes over. This dual-layer approach mirrors fault-tolerant systems in aerospace but scaled for automotive use. Yet, redundancy increases complexity—and cost.
Engineers walk a tightrope between robustness and manufacturability, especially as vehicle platforms shift toward software-defined architectures.
Another frontier: **electromagnetic compatibility (EMC)**. A reinforced camera link must thrive in a cacophony of radio frequencies, from infotainment systems to V2X communication. Shielding techniques—braided copper traces, grounded metal shields, and ferrite beads—aren’t optional; they’re foundational. A 2022 study by SAE International found that unshielded camera feeds in urban settings suffered signal corruption 2.3 times more frequently than their shielded counterparts, directly impacting ADAS reliability during critical maneuvers.
Perhaps the most underappreciated element is the **human-in-the-loop integration**.
