Behind the seamless cool air that cools your cabin on a summer drive lies a complex web of electrical, mechanical, and thermal interactions—captured not in a single diagram, but in a layered AC system diagram. To diagnose performance issues accurately, you need to see beyond the labels on a schematic and understand the true choreography of compressors, inverters, evaporators, and refrigerant flow. The real diagnostic challenge isn’t just identifying components—it’s interpreting their dynamic relationships under real-world stress.
The AC system’s diagram is more than a blueprint; it’s a diagnostic roadmap.
Understanding the Context
Every line, symbol, and label encodes potential failure points: a blinking low-pressure warning, a compressor clutch that hesitates, or a refrigerant charge imbalance. Modern vehicles rely on intricate control modules that coordinate pressure, temperature, and fan speeds—often masking subtle inefficiencies behind surface-level symptoms. This means diagnosing isn’t merely matching a fault code to a part; it’s tracing causality through a system where one failure cascades into many.
Decoding the AC System Diagram: Beyond the Symbols

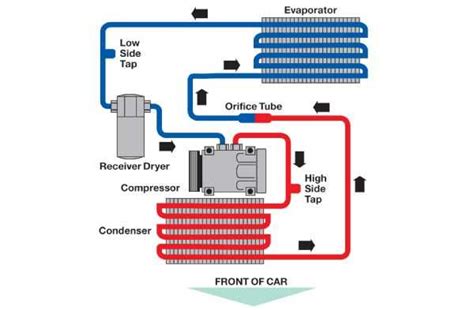

At first glance, an AC diagram looks like a maze of overlapping lines—pictures of compressors, evaporators, and condensers, each with its own vector of refrigerant flow. But true mastery demands understanding the logic: the low-side and high-side circuits operate in tandem, driven by a precise pressure differential.
Image Gallery
Key Insights
The compressor, often the system’s heart, must engage only when the condenser and evaporator meet thermal thresholds. When performance lags—sudden loss of cooling, unusual noises, or rapid compressor cycling—you’re not just looking at a single component; you’re evaluating the synchronization.
For instance, a compressor that stalls mid-cycle could signal a faulty pressure switch, a blocked expansion valve, or even a refrigerant imbalance. But isolating the root cause requires more than voltage checks. It demands interpreting pressure readings across multiple points, measuring superheat with precision, and correlating them with ambient conditions. Real-world experience shows that misdiagnosis often stems from overlooking secondary variables—like condenser airflow restrictions or evaporator coil fouling—hidden in the diagram’s margins but critical to performance.
The Hidden Mechanics: Pressure, Temperature, and Timing
Every AC system diagram encodes thermodynamic principles.
Related Articles You Might Like:
Warning Elijah List Exposed: The Dark Side Of Modern Prophecy Nobody Talks About. Act Fast Instant The Union City Municipal Court Union City NJ Has A Hidden Discount Unbelievable Confirmed Horry County Jail: The Truth About Inmate Healthcare Is Heartbreaking. Hurry!Final Thoughts
The refrigerant’s journey—from liquid at low pressure in the evaporator to compressed gas at high pressure—must maintain a tight thermal gradient. A key insight: a 2-foot refrigerant line, often cited in standard schematics, isn’t just a length—it’s a thermal buffer. Too short, and the system struggles with rapid load changes; too long, and pressure drops erode efficiency. In high-performance vehicles, this margin shrinks; even a 0.5-foot variance can shift the entire control algorithm.
Equally vital is the timing sequence: when does the clutch engage? How does the expansion valve modulate under load? A compressed-air test alone won’t reveal if a slow response stems from a stuck valve or a delayed pressure sensor.
Diagnostic acumen lies in layering data—voltage, current, pressure, and temperature—across the system’s operational envelope. The most elusive faults emerge not from component failure, but from timing mismatches, where the system logic fails the user’s intent for stability.
Common Pitfalls and Misinterpretations
One frequent error: assuming a low-pressure reading always indicates low refrigerant. In reality, high humidity, a clogged condenser, or a faulty high-side pressure sensor can produce false negatives. Similarly, a compressor clutch engaging intermittently may reflect electrical arcing rather than low refrigerant—yet technicians often default to refrigerant checks, missing the true culprit.
